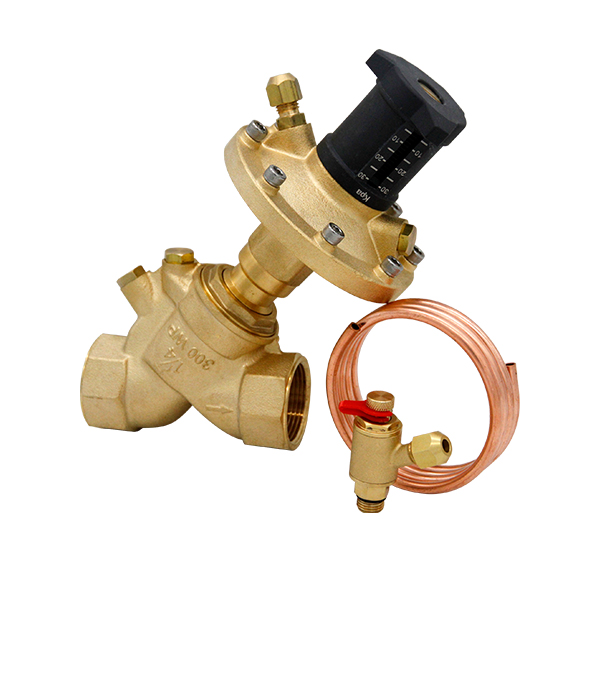

Threaded Type Differential Pressure Control Valve

Product code:CM0036

Product Information


  • Size Range: DN15-DN50

  • Pressure: PN16, PN25

  • Temperature Range: -10℃ to 120℃

  • Connection Standard: ISO 7-1

  • Main Parts:

            Body: Brass

            Seat gasket:Brass, Stainless steel

            Seat: PTFE

            Converted connector:Brass



Performance Characteristics

● The low-pressure cavity pressure-conducting hole is built-in to avoid bumps during on-site

installation.

● Extemal high pressure end pressure gauge with lock valve with manual closing function, it can be achieved by turning with a universal hexagon wrench.

● The balance diaphragm and spring are both built-in designs, making the valve more exquisite

and reliable.

● The target pressure difference value can be set by manual wheel, and the operation is simpler

and more intuitive.
