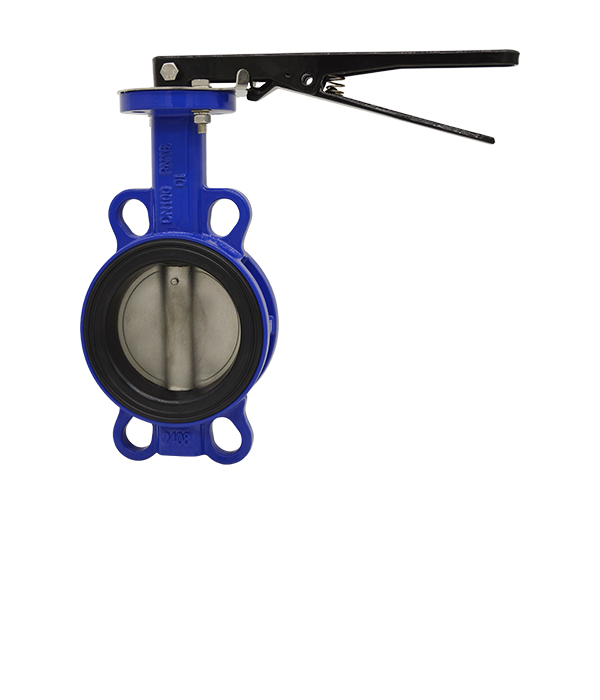

Wafer Concentric Booted Seat Butterfly Valve

Product code:B23W

Product Information


  • Size Range: DN40-DN300

  • Pressure: PN10, PN16, 200PSI, 250PSI, 10K, 16K

  • Temperature Range: -20°C to +200°C (depending on different material)

  • Face to Face: EN558-1 20 Series, ISO5752 20 Series, API609, DIN3202 K1

  • Flange Standard: ISO7005-2 PN10/PN16, EN1092-2 PN10/PN16, ANSI 125/150, AS4087 PN14/PN16, JIS 10K/16K

  • Main Parts:

         Body: Cast iron,Ductile iron,Carbon steel, Stainless steel

         Disc: Ductile iron,Stainless steel,Aluminum Bronze,Duplex SS

         Stem: Stainless steel, Duplex SS, Monel

         Seat: EPDM, NBR(Buna N), PTFE,Viton,Natural rubber,Silicone


Performance Characteristics

● The body is one-piece wafer type, suitable booted seat design, with strong strength.

● The disc use spherical sealing, featuring a large sealing specific pressure and excellent sealing performance.

● The resilient booted seat is soft seat type, isolate body and stem from line media and ensures a bubble-tight shutoff of flow media at full-rated pressure.

● Easy to replace seat, low maintenance cost design and long service life.

● Connect between disc and stem, can be pinless spline type and split stem for big sizes or with pin type.

● High Cv, lower head loss, longer lifetime with low operating torques.

● Operator can be manual hand lever, worm gear, electric actautor or penumatic actuator.
