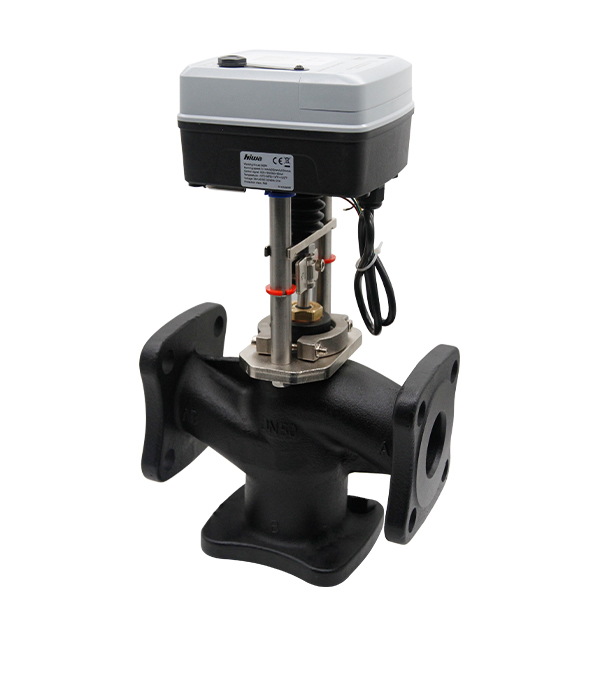

Three-way Control Regulating Valve

Product code:CM0050

Product Information


  • Size Range: DN15-DN300

  • Pressure: PN16, PN25

  • Temperature Range: -10℃ to 150℃

  • Face to Face: GB/T 12221 series 1, EN558-1 series 1

  • Flange Standard: EN1092-2, ISO7005

  • Main Parts:

        Body/Bonnet: Cast iron, Ductile iron

        Spool: Stainless steel

        Stem: Stainless steel



Performance Characteristics

● Automatic modeling, strong consistency.Adopt shot blasting and sand blasting technology. Selected material spectrum inspection, CNC machining to ensure accuracy, optional high temperature paint, suitable for steam.

● Lengthening the stem cavity is conducive to heat dissipation

● Smooth large flow channels to reduce turbulence

● International standard flange, strong versatility (ISO7005, HG20592 standard)

● Wall thickness is strengthened to ensure quality.

● Pressure compensation balanced spool design, mechanical cylinder piston antifouling seal combination mechanism. Stable performance when working in high pressure difference.



Downloads
  • Product Drawing-CM0050 2024-07-24
