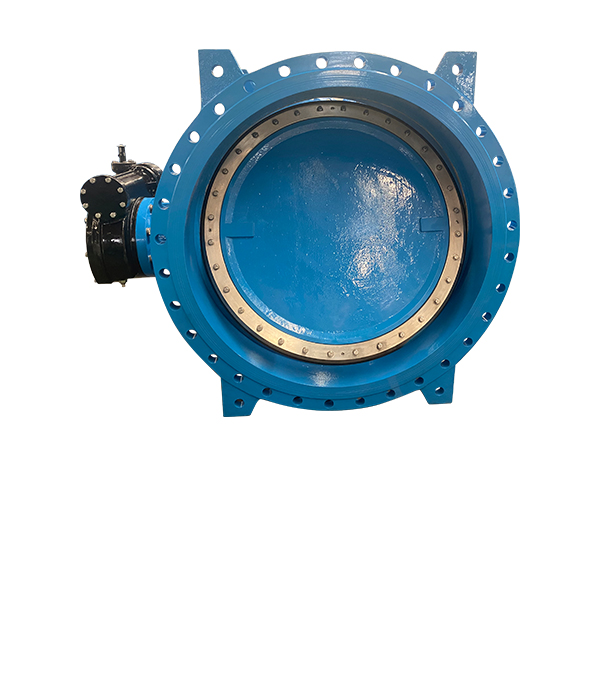

Double Flange Double Eccentric Butterfly Valve

Product code:B62F

Product Information


  • Size Range: DN100-DN3600

  • Pressure: PN10, PN16, PN25

  • Temperature Range: -20°C to +120°C (depending on different material)

  • Face to Face: EN558 14 Series(Option: Series 13), BS5155 Long

  • Flange Standard: ISO7005-2 PN10/PN16, EN1092-2 PN10/PN16

  • Main Parts:

       Body: Ductile iron

        Disc: Ductile iron

        Stem: Stainless steel

        Seat: EPDM, NBR(Buna N), Viton


Performance Characteristics

● The butterfly valve is double flange,double eccentric design, ensures low operating torque.

● Bi-directional sealing design with zero leakage performance.

● The body seat is stainless steel weld overlay, with good sealing resistance.

● Sealing ring can be EPDM, NBR or Viton,  can be easy replaced at site without special tool requirements.

● Stainless steel retainer is assembled to disc with bolts, protect against corrosion.

● Stainless steel stem with self-lubricating bearings.

● Manual Worm gear operator, electric actautor or penumatic actuator.

● Excellent design and long service life.


Downloads
  • Product Drawing-B62F-PN16-DN700-DN1200 2024-07-25
  • Product Drawing-B62F-PN16-DN100-DN600 2024-07-25
